Deepblue Smarthouse Building Material Store

Vincent House

Vincent House

Regular price $30,550.00 USD
Regular price Sale price $30,550.00 USD
Sale Sold out
Shipping calculated at checkout.

1 Living  1 Kitchen  1 Bedroom 1 Bath  40㎡

Presenting Foldable House 2117, an exclusive project by DEEPBLUE SMARTHOUSE situated in New Zealand. With its cutting-edge design and patented foldable house technology, this dwelling epitomizes the perfect blend of functionality and elegance.

Featuring one bedroom, one bathroom, a kitchen, and a living area, this thoughtfully designed dwelling provides ample space for two occupants.

Wall Structure: The external and internal walls feature ASTM high tensile steel wall frames with full assembly details and are covered with 10mm fiber cement sheets on both sides for lightweight yet sturdy construction.

Roof Structure: The roof trusses are made of 3.89mm41mm0.75mm G550 high tensile steel, ready to assemble and attach to external walls with all fixings and detailed set-out plans. The roof is covered with 0.5mm high tensile colorbond roof sheets, insulated with R3.5 glasswoo.

Ceiling: The ceiling features 10mm integrated wall panels for good insulation and soundproofing.

Exterior Wall: The exterior wall is constructed with 16mm metal-PU sandwich boards, 0.5mm vapor barrier, and R3.5 glasswool insulation for thermal efficiency.

Flooring: The wet areas have 15mm fiber cement board underneath, while the dry areas feature 15mm OSB board with R3.5 glasswool insulation. The bathroom is equipped with SPC flooring, and the dry areas have 12mm MDF flooring.

Windows and Doors: double-glazed aluminum sliding windows and sliding doors in black color are provided, along with standard fly screens. The entrance door isaluminum double-glazed sliding door, and the bathroom door is a veneer film MDF door. The bathroom is fitted with a shower tray, faucet, and vanity with a mirror.



Product parameters:

Name:  Vincent House
Size : 10x4m
Area:  40㎡
Project location: New Zealand

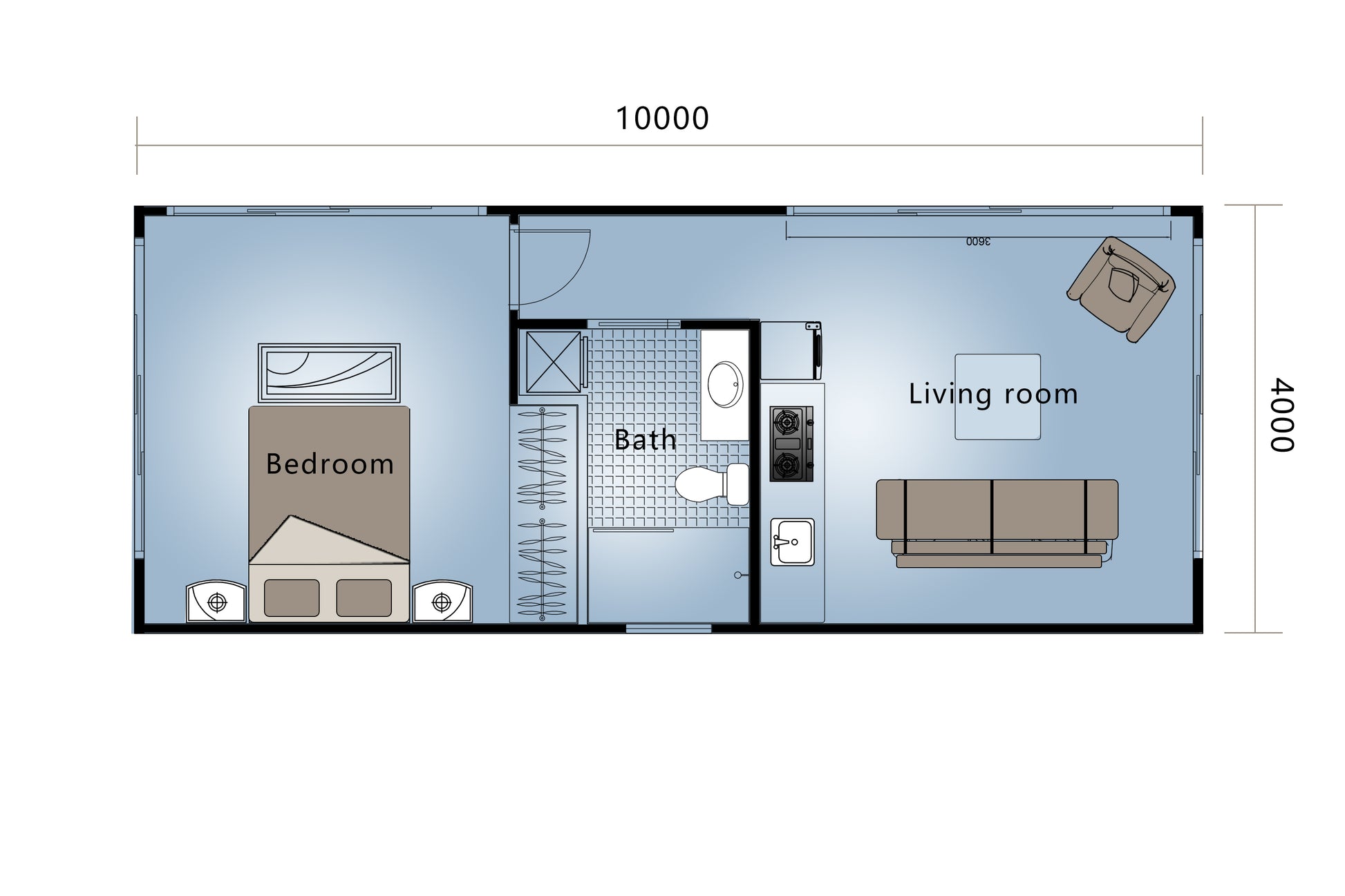

Floorplan:
